    IFM Position Sensors Inductive Sensors All Inductive Sensors II5910

    Ask Lasest Price
    Brand Name : IFM
    Model Number : IFM Position sensors Inductive sensors All inductive sensors II5910
    Price : $100-$200
    Payment Terms : T/T, L/C
    Supply Ability : 30pcs/month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

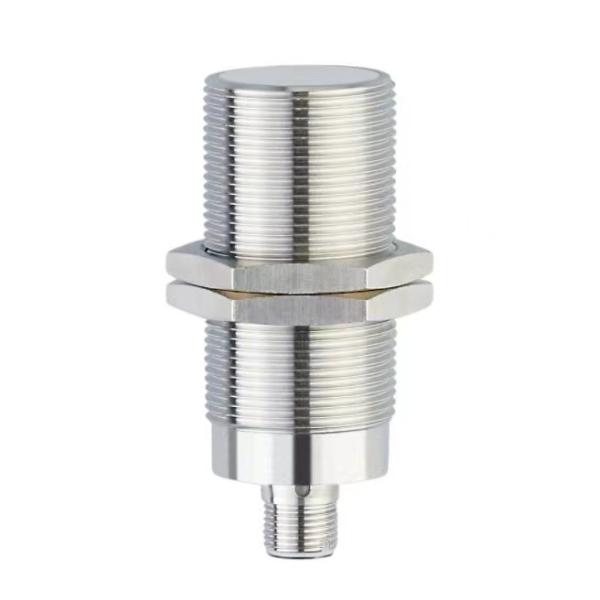

    IFM Position Sensors Inductive Sensors All Inductive Sensors II5910

    IFM Position Sensors Inductive Sensors All Inductive Sensors II5910IFM Position Sensors Inductive Sensors All Inductive Sensors II5910

    Product characteristics
    Electrical designPNP
    Output functionnormally open
    Sensing range [mm]15
    HousingThreaded type
    Dimensions [mm]M30 x 1.5 / L = 75
    Application
    Systemgold-plated contacts
    ApplicationIndustrial applications
    Electrical data
    Operating voltage [V]10...32 DC
    Current consumption [mA]10
    Protection classII
    Reverse polarity protectionyes
    Outputs
    Electrical designPNP
    Output functionnormally open
    Max. voltage drop switching output DC [V]2.5
    Permanent current rating of switching output DC [mA]200
    Switching frequency DC [Hz]100
    Short-circuit protectionyes
    Type of short-circuit protectionyes (non-latching)
    Overload protectionyes
    Monitoring range
    Sensing range [mm]15
    Real sensing range Sr [mm]15 ± 10 %
    Operating distance [mm]0...12.15
    Accuracy / deviations
    Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
    Hysteresis [% of Sr]1...20
    Switch-point drift [% of Sr]-10...10
    Operating conditions
    Ambient temperature [°C]-40...70
    ProtectionIP 67
    Tests / approvals
    EMC
    EN 61000-4-2 ESD4 kV CD / 8 kV AD
    EN 61000-4-3 HF radiated10 V/m
    EN 61000-4-4 Burst2 kV
    EN 61000-4-5 Surge0,5 kV line to line, Ri: 2 Ohm
    EN 61000-4-6 HF conducted10 V
    EN 55011class B
    signal-to-noise ratio walkie-talkie150 MHz (5 W): 7,5 cm / 450 MHz (5 W): 5 cm / 900 MHz (2 W): 0 cm
    Vibration resistance
    EN 60068-2-6 Fc20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes
    Shock resistance
    EN 60068-2-27 Ea100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
    Continuous shock resistance
    EN 60068-2-2740 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
    MTTF [years]1083
    Mechanical data
    Weight [g]209
    HousingThreaded type
    Mountingflush mountable
    Dimensions [mm]M30 x 1.5 / L = 75
    Thread designationM30 x 1.5
    Materialhousing: brass white bronze coated; sensing face: PBT white; LED window: PEI; lock nuts: brass white bronze coated
    Tightening torque [Nm]50
    Displays / operating elements
    Display
    Switching status4 x LED, yellow
    Accessories
    Items supplied
    lock nuts: 2
    Remarks
    Pack quantity1 pcs.
    Electrical connection - plug
    ConnectionConnector: 1 x M12; coding: A; Contacts: gold-plated
