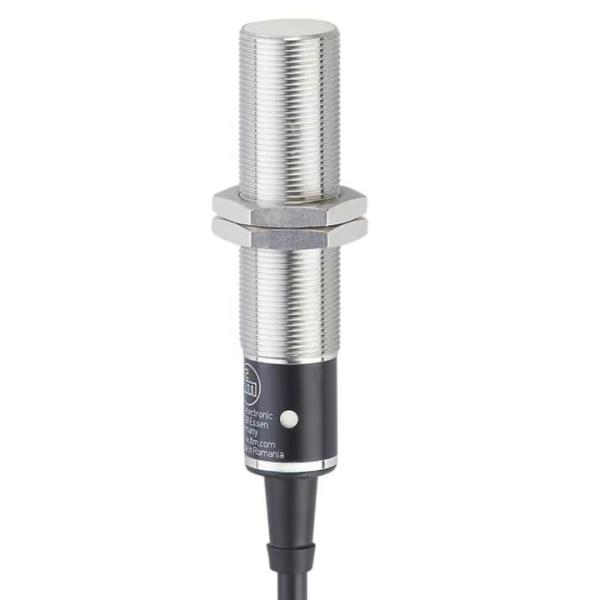

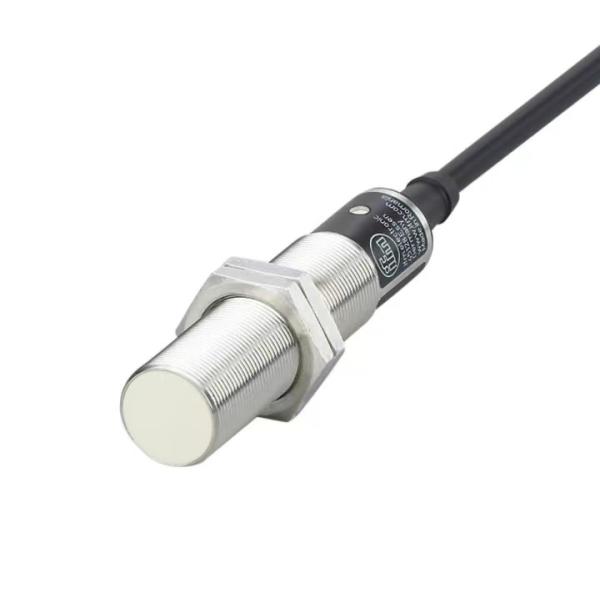

IFM Inductive Sensor IG0011 IGA2005-ABOA Ith Combined AC/DC Output Stage New And Original

Ask Lasest Price
Brand Name :	IFM
Model Number :	IG0011
Price :	$100-$200
Payment Terms :	T/T, L/C
Supply Ability :	30pcs/month
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

IFM Inductive Sensor IG0011 IGA2005-ABOA Ith Combined AC/DC Output Stage New And Original

Output function	normally open
Sensing range [mm]	5
Housing	Threaded type
Dimensions [mm]	M18 x 1 / L = 80

Electrical data

Operating voltage [V]	20...250 AC/DC
Protection class	II
Reverse polarity protection	no

Outputs

Output function	normally open
Max. voltage drop switching output DC [V]	6
Max. voltage drop switching output AC [V]	6.5
Minimum load current [mA]	5
Max. leakage current [mA]	2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]	250; (350 (...50 °C))
Permanent current rating of switching output DC [mA]	100
Short-time current rating of switching output [mA]	2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	50
Short-circuit proof	no
Overload protection	no

Monitoring range

Sensing range [mm]	5
Real sensing range Sr [mm]	5 ± 10 %
Operating distance [mm]	0...4.05

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class B

MTTF [years]

609

UL approval

Ta	0...40 °C
Enclosure type	Type 1
voltage supply	Hazardous voltage
File number UL	E174191

Mechanical data

Weight [g]	155.9
Housing	Threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 80
Thread designation	M18 x 1
Material	housing: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural
Tightening torque [Nm]	23

Displays / operating elements

Display

Switching status

1 x LED, yellow

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied

lock nuts: 2

Remarks

Recommendation: check the unit for reliable function after a short circuit.

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.5 mm²
