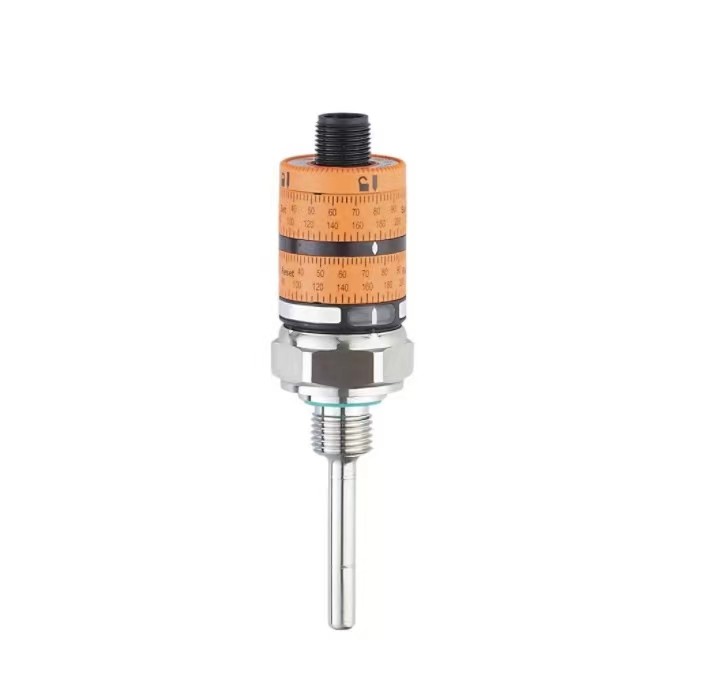

Ifm Tk6110 Temperature Switch With Intuitive Switch Point Setting

Ask Lasest Price
Brand Name :	IFM
Model Number :	TK6110
Price :	$200-$300
Payment Terms :	T/T
Supply Ability :	50pcs
Delivery Time :	3_5weeks

Add to Cart

Product Details
Company Profile

Ifm Tk6110 Temperature Switch With Intuitive Switch Point Setting

Product characteristics Ifm Tk6110 Temperature Switch With Intuitive Switch Point Setting

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

-20...140 °C

-4...284 °F

Process connection

threaded connection G 1/4

Installation length EL [mm]

Application

System	gold-plated contacts
Measuring element	1 x Pt 1000; (to DIN EN 60751, class A)
Media	liquids and gases
Medium temperature [°C]	-40...145
Pressure rating [bar]	400

Electrical data

Operating voltage [V]	9.6...32 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal
Electrical design	PNP
Number of digital outputs	2
Output function	complementary
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	500
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Measuring/setting range

Measuring range

-20...140 °C

-4...284 °F

Set point SP

-16...140 °C

3...284 °F

Reset point rP

-20...136 °C

-4...277 °F

Accuracy / deviations

Temperature drift per 10 K [K]	0.1 **)
Repeatability [K]	± 0,1
Setting accuracy [K]	± 3

Reaction times

Dynamic response T05 / T09 [s]	1 / 3; (according to DIN EN 60751)

Software / programming

Adjustment of the switch point	setting rings

Operating conditions

Ambient temperature [°C]

-40...80

Note on ambient temperature

at medium temperature: < 80 °C

-40...50 °C

at medium temperature: < 145 °C

Storage temperature [°C]

-40...100

Protection

IP 67

Tests / approvals

EMC

DIN EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
DIN EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

MTTF [years]

643.1

UL approval

UL approval number

K018

Mechanical data

Weight [g]	104.5
Material	stainless steel (1.4404 / 316L); PC; PBT; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); FKM
Tightening torque [Nm]	35
Process connection	threaded connection G 1/4
Probe diameter [mm]	6
Installation length EL [mm]	50

Displays / operating elements

Display

Power	LED, green
Switching status	LED, yellow

Remarks

**) In case of deviation from the reference condition 25 °C

The values for accuracy apply to flowing water.

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
