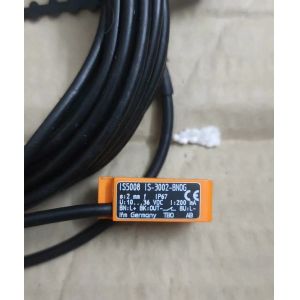

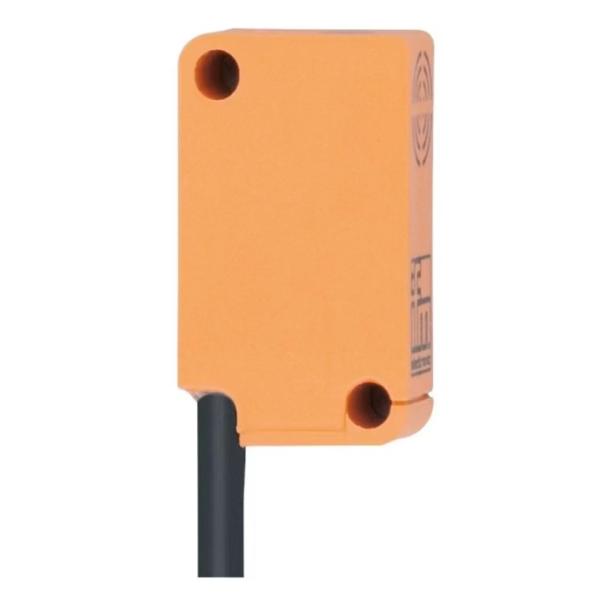

    IFM IS5008 6M INDUCTIVE SENSOR

    Ask Lasest Price
    Brand Name : IFM
    Model Number : IS5008
    Price : $39
    Payment Terms : T/T
    Supply Ability : 100pcs/month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    IFM IS5008 6M INDUCTIVE SENSOR

    IFM IS5008 6M INDUCTIVE SENSOR
    Product characteristics
    Electrical designNPN
    Output functionnormally closed
    Sensing range [mm]2
    Housingrectangular
    Dimensions [mm]28 x 10 x 16
    Electrical data
    Operating voltage [V]10...36 DC
    Current consumption [mA]15; (24 V)
    Protection classIII
    Reverse polarity protectionyes
    Outputs
    Electrical designNPN
    Output functionnormally closed
    Max. voltage drop switching output DC [V]2.5
    Permanent current rating of switching output DC [mA]200
    Switching frequency DC [Hz]800
    Short-circuit protectionyes
    Overload protectionyes
    Monitoring range
    Sensing range [mm]2
    Real sensing range Sr [mm]2 ± 10 %
    Operating distance [mm]0...1.6
    Accuracy / deviations
    Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
    Hysteresis [% of Sr]1...15
    Switch-point drift [% of Sr]-10...10
    Operating conditions
    Ambient temperature [°C]-20...80
    ProtectionIP 67
    Tests / approvals
    EMC
    EN 61000-4-2 ESD4 kV CD / 8 kV AD
    EN 61000-4-3 HF radiated3 V/m
    EN 61000-4-4 Burst2 kV
    EN 61000-4-6 HF conducted3 V
    EN 55011class B
    MTTF [years]2791
    Mechanical data
    Weight [g]125
    Housingrectangular
    Mountingflush mountable
    Dimensions [mm]28 x 10 x 16
    MaterialPBT
    Tightening torque [Nm]< 0.5; (with washer)
    Displays / operating elements
    Display
    Switching status1 x LED, yellow
    Remarks
    Pack quantity1 pcs.
    Electrical connection
    ConnectionCable: 6 m, PVC; 3 x 0.14 mm²
