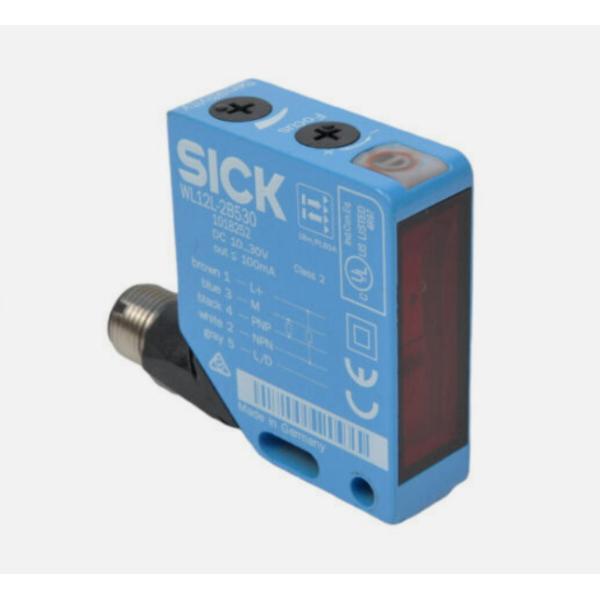

    SICK WL12L-2B530 Photoelectric Sensor 1018252

    Ask Lasest Price
    Brand Name : Sick
    Model Number : WL12L-2B530
    Certification : CE
    Price : variable
    Payment Terms : T/T
    Supply Ability : 30PCS/WEEKS
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    SICK WL12L-2B530 Photoelectric Sensor 1018252

    SICK WL12L-2B530 Photoelectric Sensor 1018252


    Features

    Functional principlePhotoelectric retro-reflective sensor
    Functional principle detailAutocollimation
    Sensing range max.0 m ... 18 m 1)
    Polarisation filtersYes
    Emitted beam
    Light sourceLaser 2)
    Type of lightVisible red light
    Light spot size (distance)Ø 0.8 mm (300 mm)
    Key laser figures
    Normative referenceEN 60825-1:2014, IEC 60825-1:2007
    Laser class2 3)
    Key LED figures
    Wave length650 nm
    AdjustmentPotentiometer
    Special featuresFocusable from 300 mm to infinite
    Special applicationsDetecting small objects, Detection of objects moving at high speeds
    Items supplied2 x clamps BEF-KH-W12, incl. screws

    Electrical data

    Supply voltage UB10 V DC ... 30 V DC 1)
    Ripple< 5 Vpp 2)
    Current consumption55 mA 3)
    Protection classIII
    Digital output
    TypePNPNPN 4) 5)
    Switching modeLight switching, Dark switching 4) 5)
    Switching mode selectorSelectable via L/D control cable
    Signal voltage PNP HIGH/LOWUv - < 2.9 V, Uv V / 0 V <= 1.5 V
    Signal voltage NPN HIGH/LOWUv - < 2.9 V, Uv V / 0 V <= 1.5 V
    Output current Imax.≤ 100 mA
    Response time≤ 200 µs 6)
    Switching frequency2,500 Hz 7)
    Circuit protectionA 8)
    C 9)
    D 10)

    Mechanical data

    HousingRectangular
    Dimensions (W x H x D)15 mm x 49 mm x 41.5 mm
    ConnectionMale connector M12, 5-pin
    Material
    HousingMetal
    Front screenPlastic, PMMA
    Weight130 g

    Ambient data

    Enclosure ratingIP67
    IP69K
    Ambient operating temperature–10 °C ... +50 °C
    Ambient temperature, storage–25 °C ... +75 °C
    UL File No.NRKH.E181493 & NRKH7.E181493
