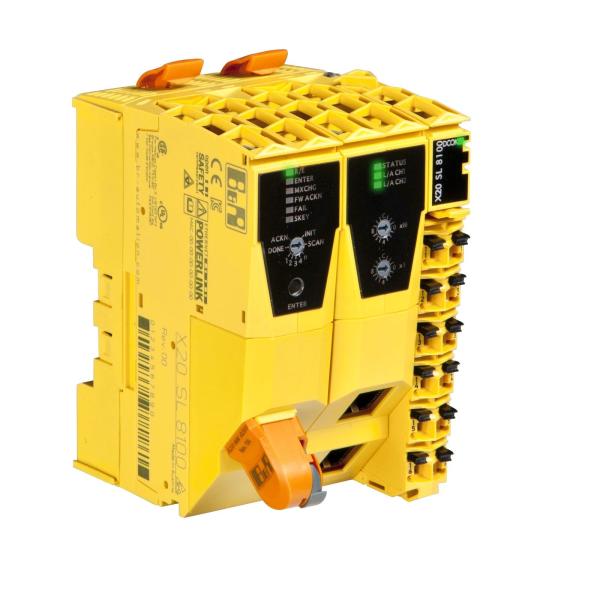

Interfaces

POWERLINK

System module

CPU

B&R ID code

0xDD61

System requirements

Automation Studio

4.0.16 or later

Automation Runtime

V3.08 or later (for AsSafety library F4.06 or later)

SafeDESIGNER

3.1.0 or later

Safety Release

1.7 or later

mapp Technology Package

mapp Safety 5.7.0 or later

Cooling

Fanless

Status indicators

CPU function, POWERLINK, SafeKEY

Diagnostics

CPU function

Yes, using LED status indicator

POWERLINK

Yes, using LED status indicator

SafeKEY

Yes, using LED status indicator

Support

Dynamic node allocation (DNA)

Yes

Power consumption

4.3 W

Additional power dissipation caused by actuators (resistive) [W]

-

Certifications

CE

Yes

UKCA

Yes

Functional safety

cULus FSPC E361559
Energy and industrial systems
Certified for functional safety
ANSI UL 1998:2013

Functional safety

IEC 61508:2010, SIL 3
EN 62061:2005/A2:2015, SIL 3
EN ISO 13849-1:2015, Cat. 4 / PL e
IEC 61511:2004, SIL 3

Functional safety

EN 50156-1:2004

ATEX

Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X

UL

cULus E115267
Industrial control equipment

HazLoc

cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5

DNV

Temperature: A(0 to 45°C)
Humidity: B(up to 100%)
Vibration: A(0.7 g)
EMC: B(bridge and open deck)

CCS

Yes

LR

ENV1

KR

Yes

ABS

Yes

BV

EC21B
Temperature: 5 - 45°C
Vibration: 0.7 g
EMC: Bridge and open deck

EN ISO 13849-1:2015

Category

Cat. 4

PL

PL e

DC

>94%

MTTFD per channel

2500 years

Mission time

Max. 20 years

IEC 61508:2010,
IEC 61511:2004,
EN 62061:2013

SIL CL

SIL 3

SFF

>90%

PFH / PFHd per channel

<1*10-10

PFH / PFHd

openSAFETY wired

Negligible

openSAFETY wireless

<1*10-14* Number of openSAFETY packets per hour

PFD per channel

<2*10-5

Proof test interval (PT)

20 years

Communication with each other

Yes

Support for Safe Commissioning Options

BOOL

512

INT

64

UINT

64

DINT

64

UDINT

64

SafeMOTION support

Yes, depends on the number of available operating licenses on the SafeKEY

Max. number of SafeMOTION axes

70, depends on the data width of the modules used

Timing precision

Time * 0.05 + Cycle time of the safety application

Shortest task class cycle time

1 ms

Max. number of SafeNODEs

100, depends on the number of available operating licenses on the SafeKEY

Max. number of POWERLINK controlled nodes

50

Data exchange between CPU and SafeLOGIC controller

Max. total data width for each direction

512 bytes

Max. number of data points for each direction

BOOL

1024

INT

128

UINT

128

DINT

64

UDINT

64

Data exchange between SafeDOMAIN and SafeDOMAIN

Use as Managing SafeDOMAIN

Yes, starting with mapp Safety 5.10.0 and hardware upgrade 2.2.1.0

Use as Connected SafeDOMAIN

Yes, starting with mapp Safety 5.10.0 and hardware upgrade 2.2.1.0

Max. total data width for each direction

64 bytes

Max. total number of data points for each direction

16

Max. number of data points for each direction

BOOL

128

INT

16

UINT

16

DINT

16

UDINT

16

Max. number of linked Managing SafeDOMAINs

Starting with mapp Safety 5.10.0 and hardware upgrade 2.2.1.0: 10

Max. resources available for SafeDESIGNER info window entries

FB instances

4096

Marker memory

262,144 bytes

Stack memory

32,768 bytes

Memory for safe input data

6144 bytes

Memory for safe output data

2048 bytes

Memory for standard input data

1024 bytes

Memory for standard output data

1024 bytes

Marker count

16,382

Additional SafeDESIGNER limit values

Max. number of function block types

512

Max. number of force variables

64

Max. number of variable with variable status

1023

Input voltage

24 VDC -15% / +20%

Input current

Max. 0.25 A

Fuse

-

Reverse polarity protection

Yes

Fieldbus

POWERLINK controlled node

Variant

2x shielded RJ45 port (hub)

Line length

Max. 100 m between 2 nodes (segment length)

Transfer rate

100 Mbit/s

Transfer

Physical layer

100BASE-TX

Half-duplex

Yes

Full-duplex

No

Autonegotiation

Yes

Auto-MDI/MDIX

Yes

Min. cycle time

Fieldbus

200 µs

Mounting orientation

Horizontal

Yes

Vertical

Yes

Installation elevation above sea level

0 to 2000 m, no limitation

Degree of protection per EN 60529

IP20

Temperature

Operation

Horizontal mounting orientation

0 to 60°C

Vertical mounting orientation

0 to 45°C

Derating

-

Storage

-40 to 85°C

Transport

-40 to 85°C

Relative humidity

Operation

5 to 95%, non-condensing

Storage

5 to 95%, non-condensing

Transport

5 to 95%, non-condensing

Note

Order SafeKEY and SafeLOGIC range of functions using the X20MK configurator.
X20 end cover plate (right) included in delivery
12-pin X20 terminal block, safety-keyed, included in delivery
SafeKEY cover included in delivery

Dimensions

Width

62.5+0.2mm

Height

99 mm

Depth

75 mm

Weight

190 g
