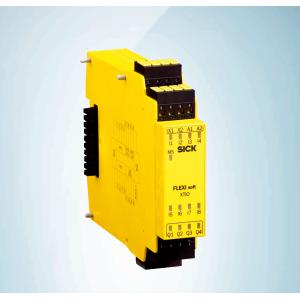

Sick - FX3-XTIO84002 FLEXI SOFT EXTENSION UNIT Part no : 1044125

Ask Lasest Price
Brand Name :	SICK
Model Number :	FX3-XTIO84002
Certification :	3C
Price :	$116/piece
Payment Terms :	T/T
Supply Ability :	1piece in stock
Delivery Time :	3 day

Add to Cart

Product Details
Company Profile

Sick - FX3-XTIO84002 FLEXI SOFT EXTENSION UNIT Part no : 1044125

Features

Module

I/O module

Configuration method

Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)

Safety-related parameters

Safety integrity level

SIL 3 (IEC 61508)

Category

Category 4 (EN ISO 13849)

Performance level

PL e (EN ISO 13849)

PFHD (mean probability of a dangerous fail-
ure per hour)

4.8 x 10-9 (EN ISO 13849) 1)
0.9 x 10-9 (EN ISO 13849) 2)

TM (mission time)

20 years (EN ISO 13849)

1) For single channel outputs.

2) For dual channel outputs.

Functions

Flexi Loop-compatible

✔

Fast shut-off

✔

Fast shut-off time

8 ms

Interfaces

Number of safety inputs

Number of test outputs

Number of safe outputs

Connection type

Plug-in spring terminals

2 SAFETY CONTROLLERS | SICK Product data sheet | 2024-11-27 22:21:16

Subject to change without notice

FX3-XTIO84002 | Flexi Soft

SAFETY CONTROLLERS

Electrical data

Protection class

III (EN 61140)

Voltage supply

Via FLEXBUS+

Internal power consumption

≤ 2.2 W 1)

Inputs
Input voltage HIGH
Input voltage LOW
Input current HIGH
Input current LOW

13 V DC ... 30 V DC

–5 V DC ... 5 V DC

2.4 mA ... 3.8 mA

–2.5 mA ... 2.1 mA

Test outputs

Voltage supply

Via FLEXBUS+

Type of output

PNP semiconductors, short-circuit protected

Test pulse generator

Output voltage HIGH

15 V DC ... 30 V DC

Output current

≤ 120 mA 2)

Outputs

Voltage supply

Via A1, A2

Supply voltage

24 V DC (16.8 V DC ... 30 V DC)

Type of supply voltage

PELV or SELV 3)

Type of output

PNP semiconductors, short-circuit protected

Output voltage HIGH

16 V DC ... 30 V DC

Output current

≤ 2 A

1) Via FLEXBUS+, without streams attest outputs.

2) On each of the two test pulse generators. This makes max. 8 testable safe series connections possible per module, each with max. 30 mA.
3) The current of the power supply that powers the module must be limited to a maximum of 4 A, either through the power supply itself or a fuse.
Mechanical data

Dimensions (W x H x D)

22.5 mm x 96.5 mm x 120.6 mm

Weight

164 g (± 5 %)

Ambient data

Enclosure rating

IP20 (EN 60529)

Ambient operating temperature

–25 °C ... +55 °C

Storage temperature

–25 °C ... +70 °C

Air humidity

≤ 95 %, Non-condensing

Classifications

ECLASS 5.0

27243001

ECLASS 5.1.4

27243101

ECLASS 6.0

27243101

ECLASS 6.2

27243101

ECLASS 7.0

27243101

ECLASS 8.0

27243101

ECLASS 8.1

27243101

ECLASS 9.0

27243101

2024-11-27 22:21:16 | Product data sheet SAFETY CONTROLLERS | SICK 3

Subject to change without notice

FX3-XTIO84002 | Flexi Soft

SAFETY CONTROLLERS

ECLASS 10.0

27243101

ECLASS 11.0

27243101

ECLASS 12.0

27243101

ETIM 5.0

EC001449

ETIM 6.0

EC001449

ETIM 7.0

EC001449

ETIM 8.0

EC001449

UNSPSC 16.0901

32151705
