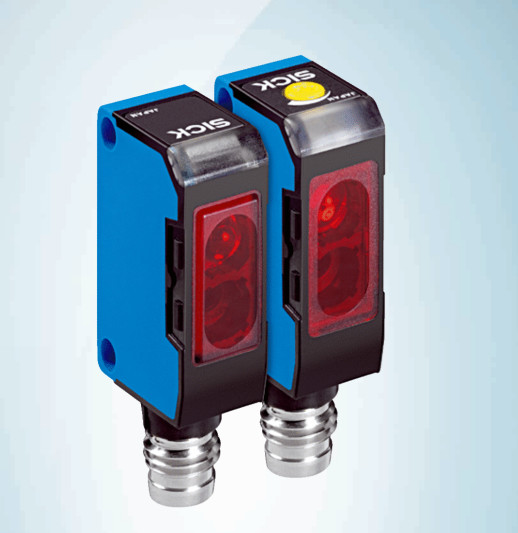

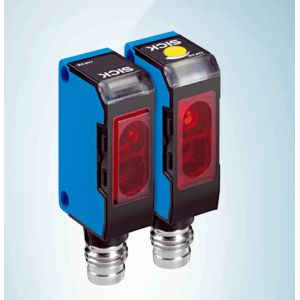

    WS/WE150-P132 | Photoelectric sensors - SICK | part no : 6011030

    Ask Lasest Price
    Brand Name : SICK
    Model Number : WS/WE150-P132
    Certification : 3C
    Price : 223$/piece
    Payment Terms : T/T
    Supply Ability : 1piece in stock
    Delivery Time : 3 day
    • Product Details
    • Company Profile

    WS/WE150-P132 | Photoelectric sensors - SICK | part no : 6011030

    Features
    Functional principleThrough-beam photoelectric sensor
    Dimensions (W x H x D)10 mm x 28 mm x 17.5 mm
    Housing design (light emission)Rectangular
    Sensing range max.0 m ... 4.4 m
    Sensing range0 m ... 4 m
    Focus
    Type of lightVisible red light
    Light sourceLED 1)
    Angle of dispersion
    AdjustmentPotentiometer, 270°
    1) Average service life: 100,000 hat TU = +25 °C.
    Mechanics/electronics
    Supply voltage UB10 V DC ... 30 V DC 1)
    Ripple± 10 % 2)
    Current consumption15 mA, 20 mA3) 4)
    Switching outputPNP
    1) Limit values.
    2) May not fall below or exceed UV tolerances.
    3) Sender.
    4) Receiver.
    5) Signal transit time with resistive load.
    6) With light/dark ratio 1:1.
    7) Do not bend below 0 °C.
    8) A = VS connections reverse-polarity protected.
    9) B = inputs and output reverse-polarity protected.
    10) C = interference suppression.
    11) D = outputs overcurrent and short-circuit protected.
    2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-10-25 15:14:41
    Subject to change without notice
    WS/WE150-P132 | W150
    MINIATURE PHOTOELECTRIC SENSORS
    Switching modeLight/dark switching
    Switching modeselectorSelectable via L/Dcontrol cable
    Output current Imax.≤ 100 mA
    Response time≤ 0.5 ms 5)
    Switching frequency1,000 Hz 6)
    Angle of reception15°
    Connection typeCable, 4-wire, 2 m 7)
    Cable materialPlastic, PVC
    Conductor cross section0.18 mm²
    Circuit protectionA 8)
    B 9)
    C 10)
    D 11)
    Protection classII
    Weight44 g
    Enclosure ratingIP67
    Items suppliedBEF-W150-A mounting bracket
    Ambient operating temperature–25 °C ... +55 °C
    Ambient temperature, storage–40 °C ... +75 °C
    UL File No.NRNT2.E128350 & NRNT8.E128350
    1) Limit values.
    2) May not fall below or exceed UV tolerances.
    3) Sender.
    4) Receiver.
    5) Signal transit time with resistive load.
    6) With light/dark ratio 1:1.
    7) Do not bend below 0 °C.
    8) A = VS connections reverse-polarity protected.
    9) B = inputs and output reverse-polarity protected.
    10) C = interference suppression.
    11) D = outputs overcurrent and short-circuit protected.
    Safety-related parameters
    MTTFD1,452 years
    DCavg0 %
    Classifications
    ECLASS 5.027270901
    ECLASS 5.1.427270901
    ECLASS 6.027270901
    ECLASS 6.227270901
    ECLASS 7.027270901
    ECLASS 8.027270901
    ECLASS 8.127270901
    ECLASS 9.027270901
    ECLASS 10.027270901
    2024-10-25 15:14:41 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
    Subject to change without notice
    WS/WE150-P132 | W150
    MINIATURE PHOTOELECTRIC SENSORS
    ECLASS 11.027270901
    ECLASS 12.027270901
    ETIM 5.0EC002716
    ETIM 6.0EC002716
    ETIM 7.0EC002716
    ETIM 8.0EC002716
    UNSPSC 16.090139121528
