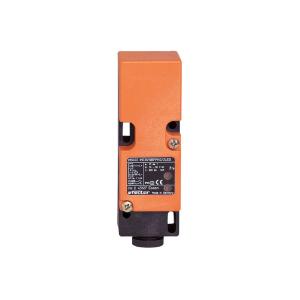

IFM Electronic Gmbh Inductive Sensor IM0010 Non-flush Mountable

Ask Lasest Price
Brand Name :	IFM
Model Number :	IM0010
Certification :	3C
Price :	$92/piece
Payment Terms :	T/T
Supply Ability :	1piece in stock
Delivery Time :	3 day

Add to Cart

Product Details
Company Profile

IFM Electronic Gmbh Inductive Sensor IM0010 Non-flush Mountable

IM0010
Inductive sensor
IME2020-FBOA
Outputs
Output function					normally open / normally closed; (selectable)
Max. voltage drop switching output DC			[V]	6
Max. voltage drop switching output AC			[V]	6.5
Minimum load current			[mA]	5
Max. leakage current			[mA]	2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC			[mA]	250; (350 (...50 °C))
Permanent current rating of switching output DC			[mA]	100
Short-time current rating of switching output			[mA]	2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]					20
Switching frequency DC [Hz]				55
Short-circuit proof				no
Overload protection					no
Detection zone
Sensing range			[mm]		20
Real sensing range Sr [mm]				20 ± 10 %
Operating distance [mm]				0...16.2
Accuracy / deviations
Correction factor				steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis Switch point drift		[% of Sr] [% of Sr]			1...15 -10...10
Operating conditions
Ambient temperature [°C] -25...80 Protection IP 65
Tests / approvals
EMC				EN 60947-5-2
				EN 55011		class B
MTTF		[years]		604
UL approval				Ta		0...40 °C
				Enclosure type		Type 1
				voltage supply		Unlimited Voltage
				File number UL		E174191
Mechanical data
Weight			[g]		183
Housing				rectangular
Mounting					non-flush mountable
Dimensions [mm]				40 x 40 x 120
Materials				PPE
Displays / operating elements
Display switching status 1 x LED, yellow
	ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM0010-00 — 06.03.2003

IM0010
Inductive sensor
IME2020-FBOA
Electrical connection
Required protection					miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Remarks
Remarks				Recommendation: Check the safe functioning of the unit after a short circuit.
				5 positions of the active zone possible
