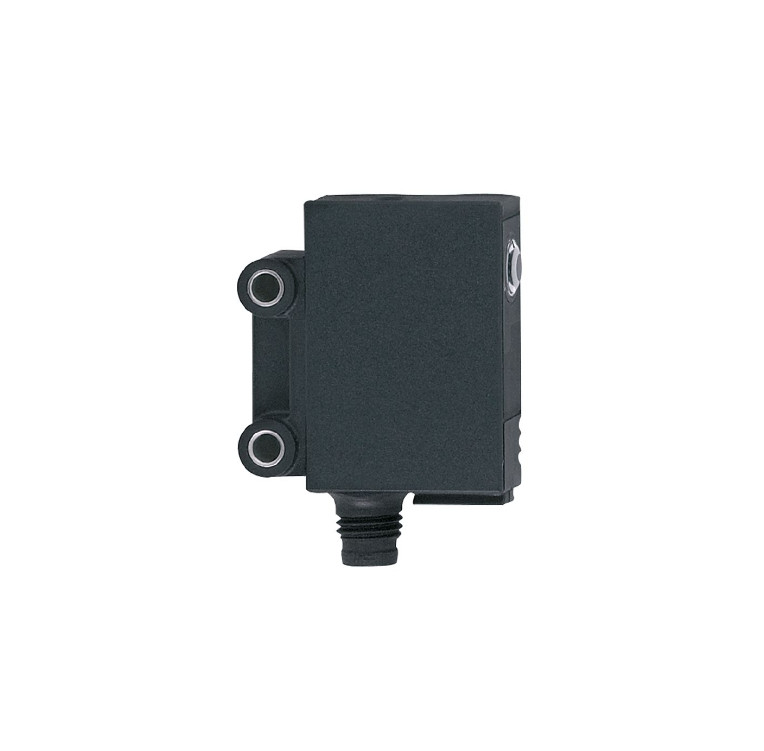

OJ5139 - Through-beam laser sensor receiver - ifm 35 x 11 x 24

Ask Lasest Price
Brand Name :	IFM
Model Number :	OJ5139
Certification :	3C
Price :	$117/piece
Payment Terms :	T/T
Supply Ability :	1piece in stock
Delivery Time :	3 day

Add to Cart

Product Details
Company Profile

OJ5139 - Through-beam laser sensor receiver - ifm 35 x 11 x 24

Application
Function principle				Through-beam sensor
Electrical data
Operating voltage [V]				10...30 DC
Current consumption	[mA]			< 12
Protection class			III
Reverse polarity protection			yes
Type of light			red light
Wave length	[nm]			650
Typ. lifetime [h]			50000
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5139-03 — 05.05.2010

OJ5139
Through-beam laser sensor receiver
OJELFPKG/SO/AS
Outputs
Electrical design				PNP
Output function				light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC		[V]	2.5
Permanent current rating of switching output DC		[mA]	200
Switching frequency DC		[Hz]	1200
Short-circuit protection			yes
Type of short-circuit protection			pulsed
Overload protection				yes
Detection zone
Transmitter / receiver				receiver
Range	[m]		< 15
Range adjustable			yes
Diameter of the smallest detectable object	[mm]		2
Operating conditions
Ambient temperature [°C] -10...60 Protection IP 67
Tests / approvals
EMC			EN 60947-5-2
Laser protection class			1
MTTF [years]			952
Mechanical data
Weight		[g]		39
Housing			rectangular
Dimensions [mm]			35 x 11 x 24
Materials			housing: ABS; LED window: SEPS; pushbutton: SEPS
Lens material			glass
Lens alignment			side lens
Displays / operating elements
Display			switching status		1 x LED, yellow
			operation		1 x LED, green
			function		1 x LED, red
Electronic lock			yes
Accessories
			screws: 2 x
Accessories (supplied)			spring washers: 2 x
			Nuts: 2 x
Remarks
Remarks			operating voltage "supply class 2" according to cULus
Pack quantity			1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5139-03 — 05.05.2010

OJ5139
Through-beam laser sensor receiver
OJELFPKG/SO/AS
Electrical connection
Connector: 1 x M8
Connection
2 Teach
